Product Overview

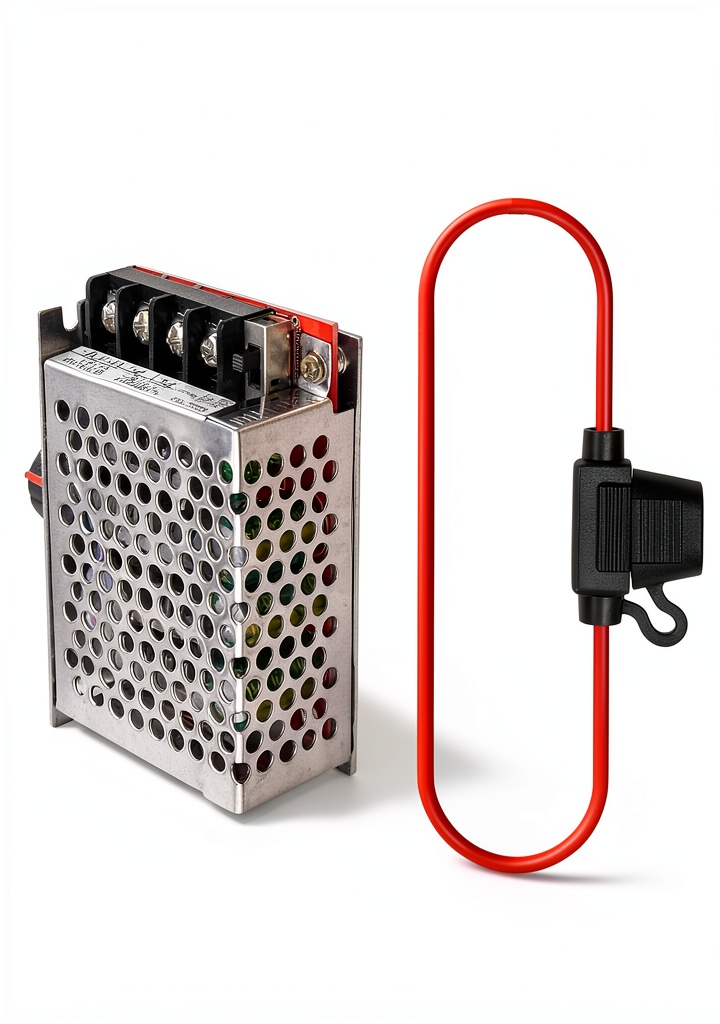

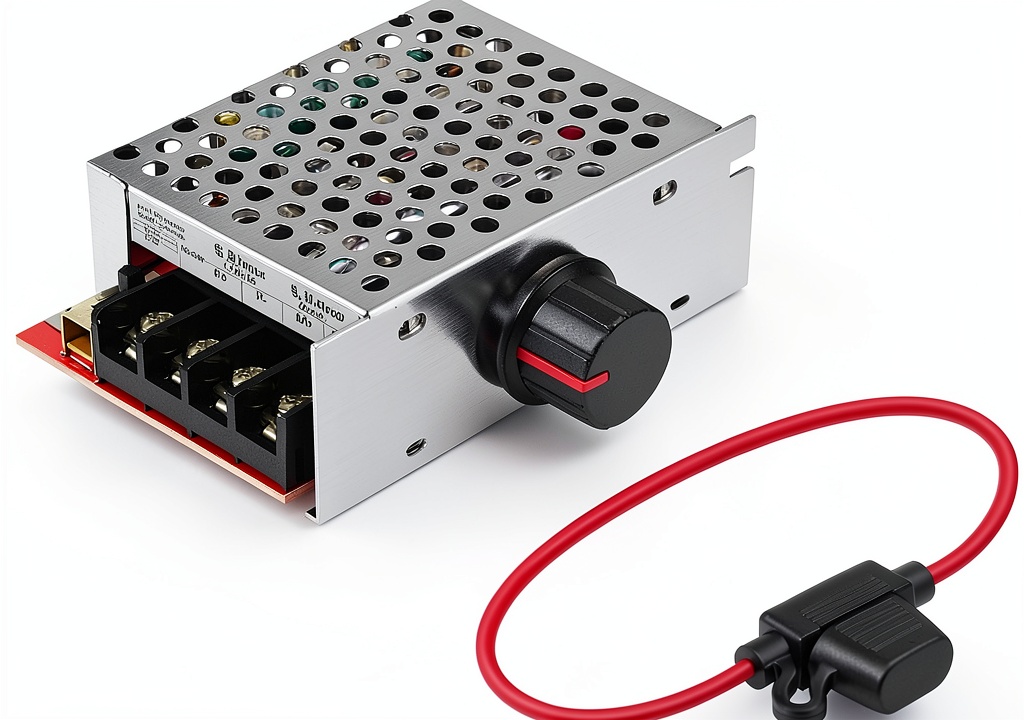

The Shenzhen Jie Wei Wo PWM motor speed controller is a high-performance device designed for precise regulation of DC brush motors. It operates on a wide voltage range of DC7-70V and handles currents up to 30A, making it suitable for diverse applications from small DIY projects to industrial machinery. The controller features a robust PCB board with a RUN/STOP/BRAKE switch for enhanced safety and control. Key specifications include compact dimensions of 2.76 x 3.94 x 2.76 inches, a lightweight design at 5.9 ounces, and compatibility with motors up to 500W depending on voltage. Included components consist of the motor speed regulator and a separable potentiometer soft line measuring 5.9 inches for flexible installation.
Usage
This motor speed controller is ideal for environments requiring adjustable motor speeds, such as workshop tools, conveyor systems, and hobbyist projects like model trains or robotics. It targets DIY enthusiasts, industrial technicians, and engineers who need reliable speed modulation for DC brush motors in applications ranging from home improvements to professional equipment. The controller is not suitable for AC motors or brushless motors, ensuring it meets specific DC motor needs with efficiency and safety.
Why Choose Us
Shenzhen Jie Wei Wo stands out with its commitment to quality and innovation, offering a motor controller that combines wide voltage compatibility with high current handling. The product’s competitive advantages include a durable build, user-friendly design with clear connection labels, and a RUN/STOP/BRAKE function for operational safety. Backed by positive customer reviews and a strong rank in electrical motor controls, it provides reliable performance and ease of use, distinguishing it from generic alternatives.
Key Features
- Wide voltage range DC7-70V for versatile motor applications
- High current capacity up to 30A with overload protection

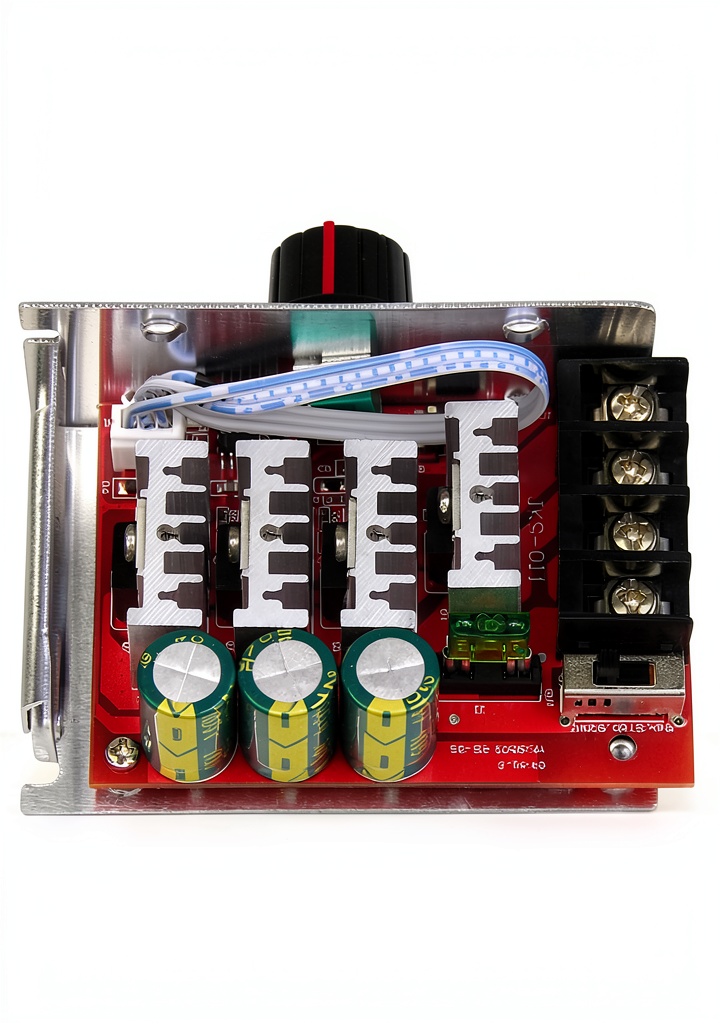

- RUN/STOP/BRAKE switch on PCB for safe and easy control

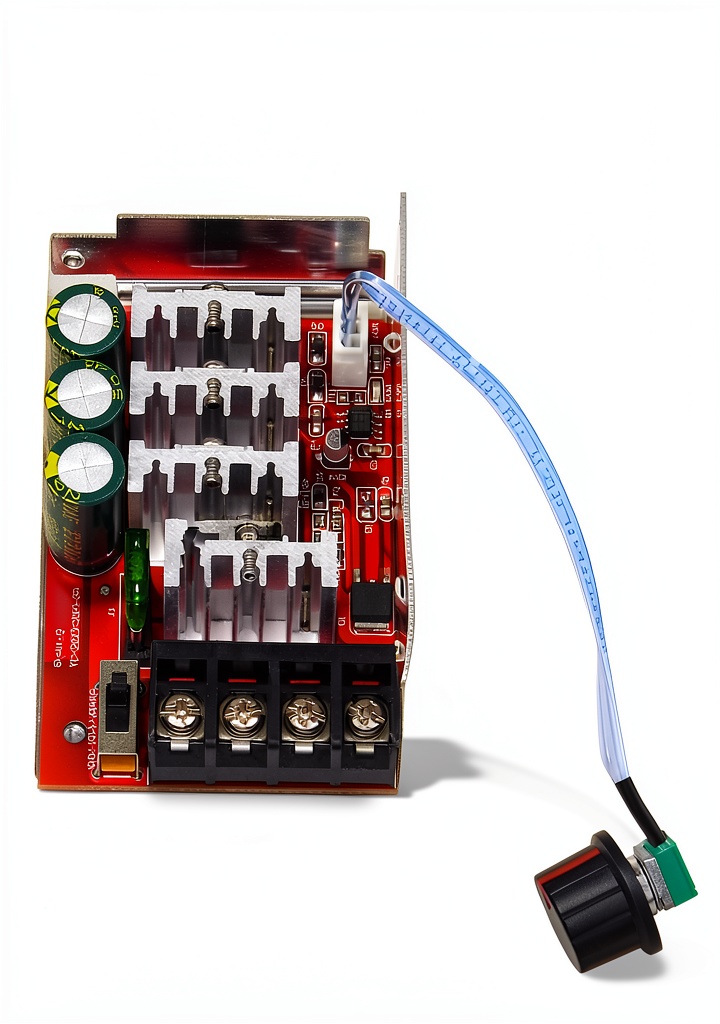

- Separable potentiometer soft line for flexible installation
- Compact and lightweight design for space-efficient setups
FAQ
What types of motors is this controller compatible with?
This controller is designed for DC brush motors only and is not suitable for AC motors or brushless motors. Ensure your motor type matches for optimal performance.
How do I connect the controller to my motor and power supply?

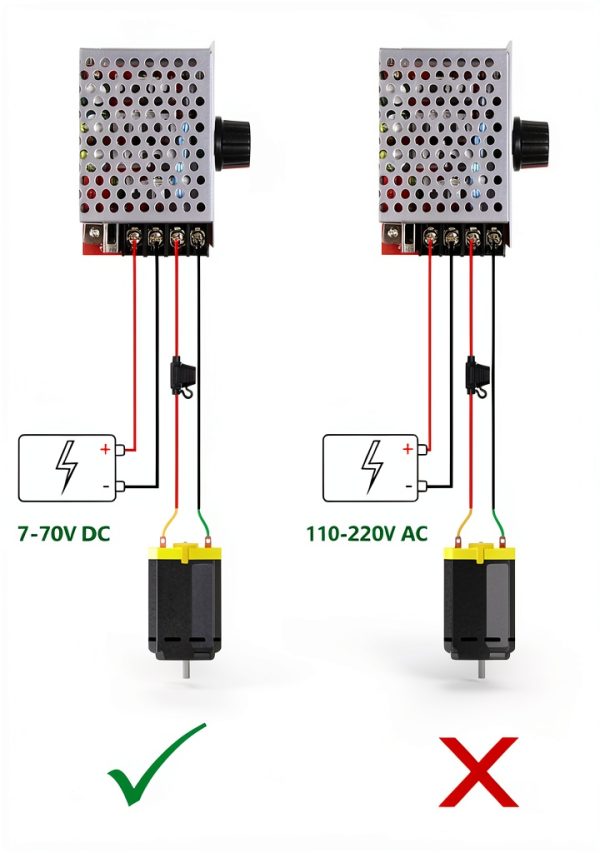

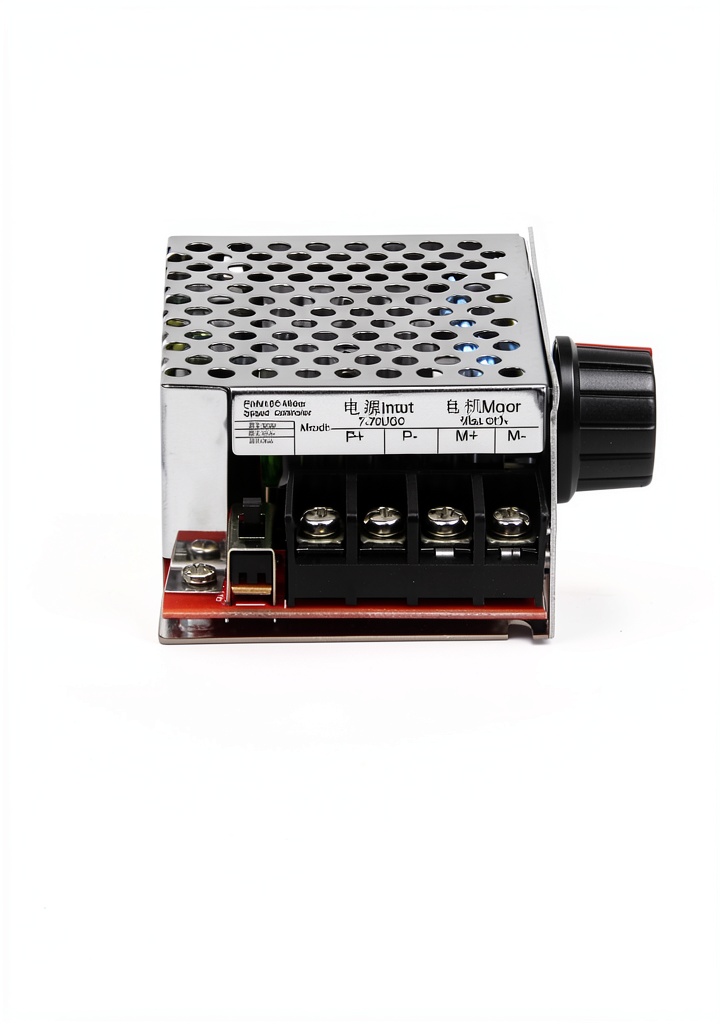

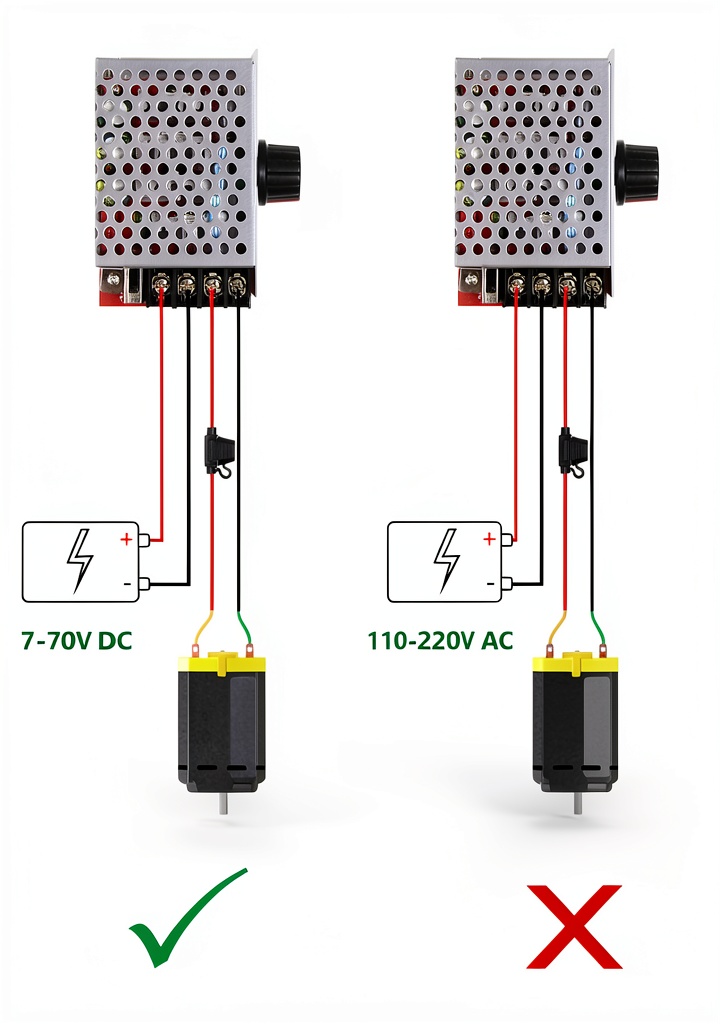

Connect P+ to the positive polarity of the DC power supply and P- to the negative polarity. For the motor, attach M+ to the motor positive and M- to the motor negative, following the provided reference images.
What is the maximum power rating for this controller?
The controller supports up to 300W at 12V, 400W at 24V, 450W at 48V, and 500W at 60V. Do not exceed these limits to prevent overload and ensure longevity.
Can I use this controller for industrial applications?
Yes, it is suitable for industrial uses such as machinery control, thanks to its high current capacity and robust design, but always verify voltage and current requirements.
What should I do if the controller stops working during use?
Check the RUN/STOP/BRAKE switch is set to RUN, ensure connections are secure, and confirm the power supply and motor are within the specified voltage and current limits.
